A Leading Solution Provider For Excavator Attachments
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PA TECH |
| Certification: | CE |
| Model Number: | JX-J04H, JX-J06H, JX-J08H, JX-J10H, JX-J14H; JX-J02A, JX-J04D |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200-500 sets |
| Keyword: | Double Cylinders Hydraulic Shear | Application: | Construction, Demolition And Mining Services |
|---|---|---|---|
| Brand: | P.A Tech | Type: | JX-J04H, JX-J06H, JX-J08H, JX-J10H, JX-J14H; JX-J02A, JX-J04D |
| OEM: | Available | After-sales Service: | Field Installation, Commissioning And Training, Field Installation |
| Video Outgoing-installation: | Available | Machinery Test Report: | Available |
| Warranty: | 6 Months | Suitable For Excavator: | 3-50ton |
| Rotation Mode: | 360° Hydraulic, 360。 Ball Colling Rotation | Max. Opening: | 440-1200 |
| High Light: | L1287mm hydraulic excavator parts,3tons hydraulic excavator parts,3tons excavator shear |
||

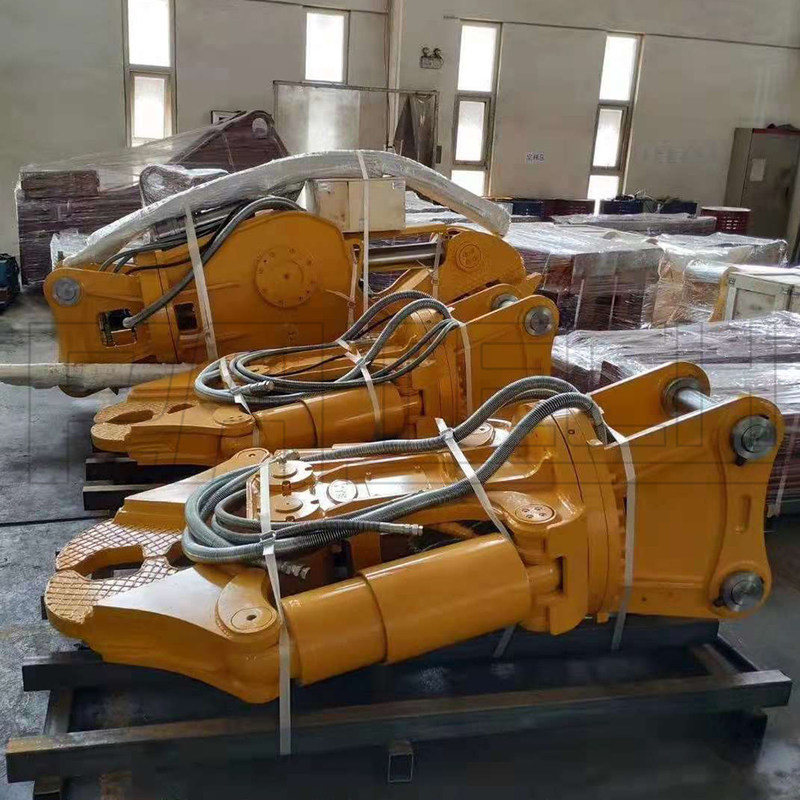

Concrete Type Concrete Hydraulic Scrap Shear Matched Different Brands Of Excavators
Description of Double Cylinders Hydraulic Shear / Excavator Wood Shear
According to the number of driving cylinders, it is divided into single-cylinder hydraulic shears and double-cylinder hydraulic shears. According to the different tonnage of supporting excavators, single-cylinder hydraulic shears can be divided into four types: 02 (3-5 tons), 04 (5-8 tons), 06 (12-18 tons), 08 (18-26 tons), double-cylinder There are three types of hydraulic shears: 06, 08, and 10 (26-35 tons).
Application of Double Cylinders Hydraulic Shear / Excavator Wood Shear
1- P.A Tech excavator tree shear could be used for lumbering, wood cutter
2- Our excavator steel shear could be used for steel bar shear/cutting
3- Besides, our hydraulic shears could also be used for building demolition, rebar recovery, fire rescue, etc.
Features of Double Cylinders Hydraulic Shear / Excavator Wood Shear
Scrap type:
1. Special rotary support is adopted, and the performance is stable.
2. The shear body is made of Thyssenkrupp XAR400 wear resistance steel, which has double-layer wear-resistant protection, high strength and long service life.
3. Structural optimization design results in large shear force.
Concrete Type Concrete Hydraulic Scrap Shear Matched Different Brands Of Excavators
Double cylinder hydraulic shear (concrete):
1. Special rotary support is adopted, and the performance is stable.
2. The shear body is made of imported HARDOX400 plate, which has double-layer wear-resistant protection, high strength and long service life.
3. Suitable for concrete structure, one-time disassembly.
Product Parameters of Double Cylinders Hydraulic Shear / Excavator Wood Shear
| Concrete | |||||
| Model | JX-J04H | JX-J06H | JX-J08H | JX-J10H | JX-J14H |
| Weight | 620 | 1345 | 2164 | 3060 | 4052 |
| Max. Opening | 540 | 650 | 950 | 1100 | 1200 |
| Height | 1419 | 1888 | 2374 | 2480 | 2700 |
| Width | 884 | 1175 | 1360 | 1540 | 1700 |
| The Active Length of Blade |
|||||
| Rotation Mode | 360. Ball Colling Rotation |
360. Hydraulic | |||
| Pressure | 235 | 300 | 320 | 320 | 320 |
| Root Curshing Force | 81*2 | 120*2 | 168*2 | 288*2 | 375*2 |
| Middle Crushing Force | 44.5*2 | 66*2 | 78*2 | 125*2 | 174*2 |
| Fore-end Curshing force | 25*2 | 40*2 | 56*2 | 90*2 | 118*2 |
| Suitable for the Excavator | 5-8 | 15-18 | 20-25 | 28-35 | 38-50 |
Concrete Type Concrete Hydraulic Scrap Shear Matched Different Brands Of Excavators
| Model | JX-J02A | JX-J04D |
| Weight | 350 | 500 |
| Max. Opening | 440 | 515 |
| Height | 1287 | 1525 |
| Width | 765 | 895 |
| Rotation Mode | 360° Mechanical | 360°Ball Colling Rotation |
| Pressure | 210 | 235 |
| Root Curshing Force | 95 | 110 |
| Middle Crushing Force | 45 | 50 |
| Fore-end Curshing force | 25 | 36 |
| Suitable for the Excavator | 3-5 | 5-8 |
Workshop Show of Double Cylinders Hydraulic Shear / Excavator Wood Shear
Factory Show of Double Cylinders Hydraulic Shear / Excavator Wood Shear
Concrete Type Concrete Hydraulic Scrap Shear Matched Different Brands Of Excavators
