A Leading Solution Provider For Excavator Attachments
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PA TECH |
| Certification: | CE |
| Model Number: | JXC04， JXC06， JXC08， JXC10... |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200-500 sets |
| Keyword: | Hydraulic Pulverizer, Crushing Forceps,Scrap Shear Concrete Crusher | Application: | Dismantling Of Waste Vehicles |
|---|---|---|---|
| Brand: | PA Tech | Type: | JXC04， JXC06，JXC08，JXC10... |
| OEM: | Available | After-sales Service: | Field Installation, Commissioning And Training, Field Installation |
| Video Outgoing-installation: | Available | Machinery Test Report: | Available |
| Warranty: | 6 Months | Suitable For Excavator: | 6-30Ton |
| Max. Crushing Force: | 83-225T | ||
| High Light: | OEM concrete muncher for excavator,30Ton concrete muncher for excavator,30Ton concrete pulverizer for mini excavator |
||
Excavator Demolition Scrap Shear, Excavator Concrete Crusher for Demolition Engineering
Description of Crushing forceps, Hydraulic Pulverizer, Shear Crusher:
The hydraulic pulverizer consists of an upper frame, an upper jaw, a shell, and an oil cylinder. The upper jaw is composed of jaw teeth, blades and lower jaw teeth. The external hydraulic system provides oil pressure for the hydraulic cylinder, so that the upper jaw and the fixed jaw of the hydraulic pulverizer can be opened and closed to achieve the effect of crushing.
Application of Crushing forceps, Hydraulic Pulverizer, Shear Crusher:
1- Hydraulic pulverizer, Excavator hydraulic crushing forceps are widely used in the demolition of buildings, factories, houses and other buildings;
2- It is also called demolition excavator shear, and it could also be used for concrete crushing & recycling, steel recycling, rescue &relief operations, etc ..
Excavator Demolition Scrap Shear, Excavator Concrete Crusher for Demolition Engineering
Product Parameters of Crushing forceps, Hydraulic Pulverizer, Shear Crusher:
| Model | Unit | JXC04 | JXC06 | JXC08 | JXC10 |
| Product Weight | kg | 660 | 1350 | 1750 | 2750 |
| Max. Opening | mm | 577 | 730 | 900 | 1015 |
| Length | mm | 1720 | 2000 | 2150 | 2374 |
| Width | mm | 658 | 660 | 706 | 860 |
| Max. Crushing Force | ton | 83 | 105 | 165 | 225 |
| Max. Shear Force | ton | 126 | 165 | 210 | 305 |
| Blade Length | mm | 120 | 150 | 180 | 200 |
| Drive Hydraulic | kg/cm² | 230 | 300 | 320 | 380 |
| Adaptor Drivers | kg | 6-12 | 12-18 | 18-26 | 26-30 |

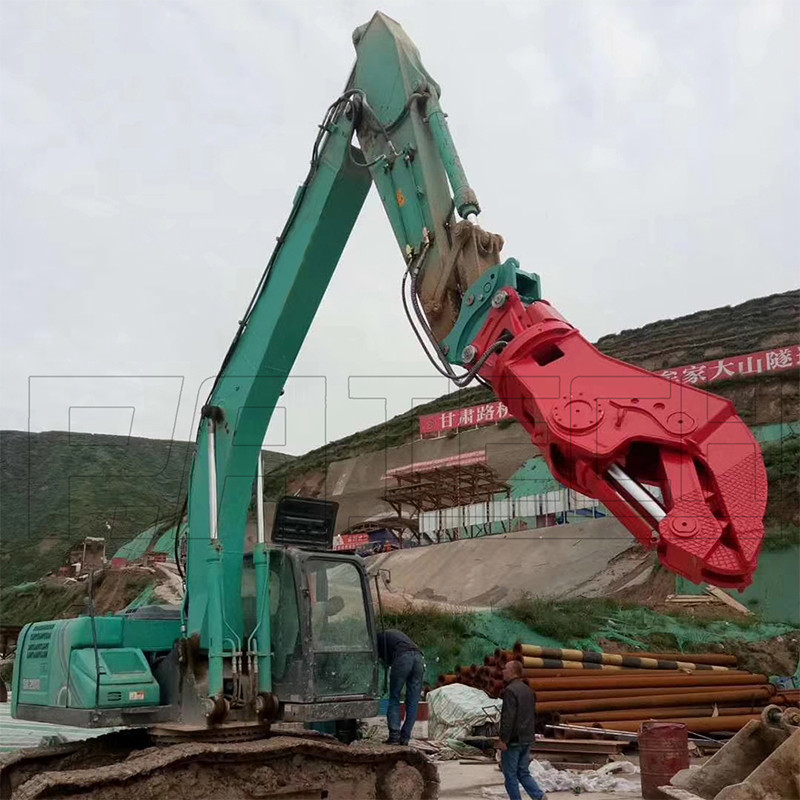

Application of Crushing forceps, Hydraulic Pulverizer, Shear Crusher
Excavator Demolition Scrap Shear, Excavator Concrete Crusher for Demolition Engineering
Features of Crushing forceps, Hydraulic Pulverizer, Shear Crusher:
1. Secondary breakage of concrete and separation of steel bar and concrete.
2. Unique jaw tooth layout design, double-layer wear-resistant protection, thyssenkrupp XAR400 wear resistance steel.
3. The structure is optimized by load design, balancing the opening size and breaking force.
Factory Show of Crushing forceps, Hydraulic Pulverizer, Shear Crusher
Our Service:
The warranty for our excavator attachments is six months. And, clients could enjoy our on-line consultation and answering service. All our excavator attachments could be customized, OEM is available. As a manufacturer who have strong strong capacity, we usually could arrange delivery for our excavator attachments within 15 days ( delivery can be within one week for cargo that have stock).
