P.A Tech Co.,Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | P.A Tech |
| Certification: | CE, ISO |
| Model Number: | KR40A, KR50A |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | Usually within two weeks |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 100-300 Sets |
| Features: | Fast Transition, High Efficiency, High Security, Etc | Keyword: | Hydraulic Customized Piling Rig, Excavator Mounted Modular Drill Rig |
|---|---|---|---|
| Models: | KR40A, KR50A | Factory Certificate: | Yes |
| Application: | Refit 8-30 Ton Excavator, Improve Drilling Depth/efficiency | Material Used: | High Guarantee |
| Condition: | New | Type: | Rotary Drilling Rig,down The Hole Rock Drill |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Usage: | Piling Foundation | Excavator Size: | 8t-13t, 14t-16t, 20t-23t, 24t+ |
| Max. Drilling Diameter: | 1200mm | Max. Drilling Depth: | 12, 16, 20, 24m |
| Operating Width: | 2300-3300mm | Transport Weight: | 5.4-7ton |
| High Light: | W3.3m Modular Rotary Drilling Rig,30 Ton Excavator Modular Rotary Drilling Rig,SANY rotary piling rig |
||
Modular Rotary Excavator Drill Rig Attachment KR40-A Type, Customized Piling Rig
Description of Hydraulic Customized Piling Rig KR40-A Type:
Drilling Attachment of Rotary Drilling Rig, also called Hydraulic Customized Piling Rig, Excavator Mounted Modular drill rig, it is a kind of refitting device which could be used to refit a complete set of rotary drilling device on the customer's excavator, so that it could totally realize the function of rotary drilling and piling.
Application of Hydraulic Customized Piling Rig KR40-A Type:
1- P.A Tech Hydraulic Customized Piling Rig KR40-A can be used to refit the 8-30 ton excavator.
2- After refitting the excavator, it can realize the new function of rotary drilling rig to do the bore pile works.
3- By using the drilling attachment of Rotary drilling rig to refit the excavator, the excavator maximum depth could reach 24 meters.
Parameters of Hydraulic Customized Piling Rig KR40-A Type:
| Technical Specification | |
| Rotary Drilling Rig Model | KR40A |
| Excavator Size | 8t-13t |
| Max. torque | 32-42 kN.m |
| Max. drilling diameter | 1200 mm |
| Max. drilling depth | 12 m |
| Max. cylinder thrust | 70 kN |
| Max. cylinder trip | 900 mm |
| Main winch pull force | 45 kN |
| Main winch speed | 30 m/min |
| Mast inclination(Lateral) | ±6° |
| Mast inclination(Forward) | -30°~﹢60° |
| Working speed | 7-40rpm |
| Min. radius of gyration | 2750mm |
| Max. pilot pressure | 31.5Mpa |
| Operating height | 7181mm |
| Operating width | 2300mm |
| Transport height | 3014mm |
| Transport width | 2300mm |
| Transport length | 7157mm |
| Transport weight | 5.4t |
| Remark | Restructuring big arm |

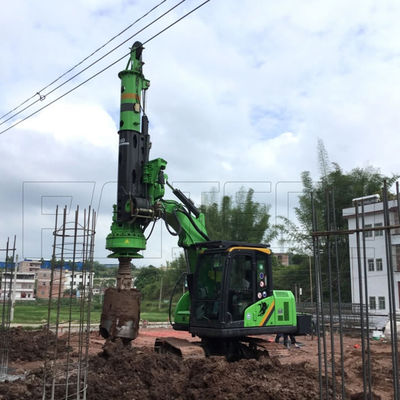

Construction Site Of Hydraulic Customized Piling Rig KR40-A Type:
Features of Hydraulic Customized Piling Rig KR40-A Type:
● Fast transition
The leading overall transport hydraulic rotary drilling rig can change transport status into working status rapidly.
● High Efficiency
High-performance hydraulic system and control system developed in cooperation with Institute of CNC and Hydraulic Technology of Tianjin University to achieve the best performance;
● High security
Designed in strict accordance with the EU safety standard EN791, meets the requirements of dynamic and static stability.
● Monitor Timely
Independently developed special control system for rotary rig, monitor depth and dip angle timely.
● High Universality
Modify according to the excavator hydraulic system, easy operation and maintenance.
Workshop show of Hydraulic Customized Piling Rig KR40-A Type:
Service of Hydraulic Customized Piling Rig KR40-A Type:
The warranty for our excavator attachments is six months. And, clients could enjoy our on-line consultation and answering service. All our excavator attachments could be customized, OEM is available. As a manufacturer who have strong strong capacity, we usually could arrange delivery for our excavator attachments within 15 days ( delivery can be within one week for cargo that have stock).
If you have any question or want to know more about our excavator attachments,please feel free to send an inquiry to us!We will do the best to help you!
