P.A Tech Co.,Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PA TECH |
| Certification: | CE |
| Model Number: | JXZ300/JXZ600/JXZ800/JXZ1000 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200-500 sets |
| Keyword: | Vibratory Rammer, Hydraulic Compactor Plate | Application: | Urban Infrastructure Service Field |
|---|---|---|---|
| Brand: | P.A Tech | Type: | JXZ300/JXZ600/JXZ800/JXZ1000 |
| OEM: | Available | After-sales Service: | Field Installation, Commissioning And Training, Field Installation |
| Video Outgoing-installation: | Available | Machinery Test Report: | Available |
| Warranty: | 6 Months | Suitable For Excavator: | 4-9ton...23-30ton |
| Weight: | 400kg-1100kg | Bottom MeasurementD: | 900x550x25mm...1350x900x30mm |
| Width: | 550-900mm | ||
| High Light: | 2000rpm hydraulic compactors for excavators,400kg hydraulic compactors for excavators,2000rpm hydraulic plate compactor excavator |
||

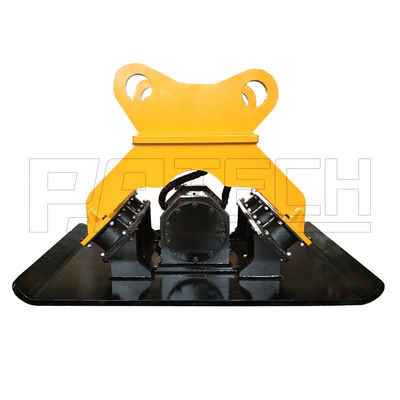

Hydraulic Compactor Plate Can Be Used With Different Kinds Of Excavators
Description of Hydraulic Compactor Plate, Vibratory Rammer
Rammer is also known as hydraulic vibration rammer. At present, the rammer can be divided into 5 levels according to the tonnage of supporting excavators: 02 (3-5 tons), 04 (5-8 tons), 06 (11-16 tons), 08 (17-23 tons) and 10 (23-30 tons). With simple structure, convenient operation and maintenance.
Application of Hydraulic Compactor Plate, Vibratory Rammer
It can complete the treatment of plane compaction, slope compaction, step compaction, ditch pit compaction and other complex foundation compaction.It is mainly used for tamping slope, dam and building foundation engineering.
Product Parameters of Hydraulic Compactor Plate, Vibratory Rammer
| Model | Unit | JXZ 300 | JXZ600 | JXZ 600 | JXZ 1000 |
| Impulse force | Ton | 4 | 6.5 | 15 | 15 |
| Vibration frequency | rpm | 2000 | 2000 | 2000 | 2000 |
| Oil flow | l/min | 45-75 | 85-105 | 120-170 | 120-170 |
| Operating pressure | kg/cm2 | 100-130 | 100-130 | 150-200 | 150-200 |
| Weight | kg | 400 | 750 | 1000 | 1100 |
| Bottom measurement | (LXWXT)mm | 900x550x25 | 1160x700x28 | 1350x900x30 | 1350x900x30 |
| Height | mm | 760 | 920 | 1060 | 1100 |
| Width | mm | 550 | 700 | 900 | 900 |
| Suitable excavator | Ton | 4-9 | 11-16 | 17-23 | 23-30 |

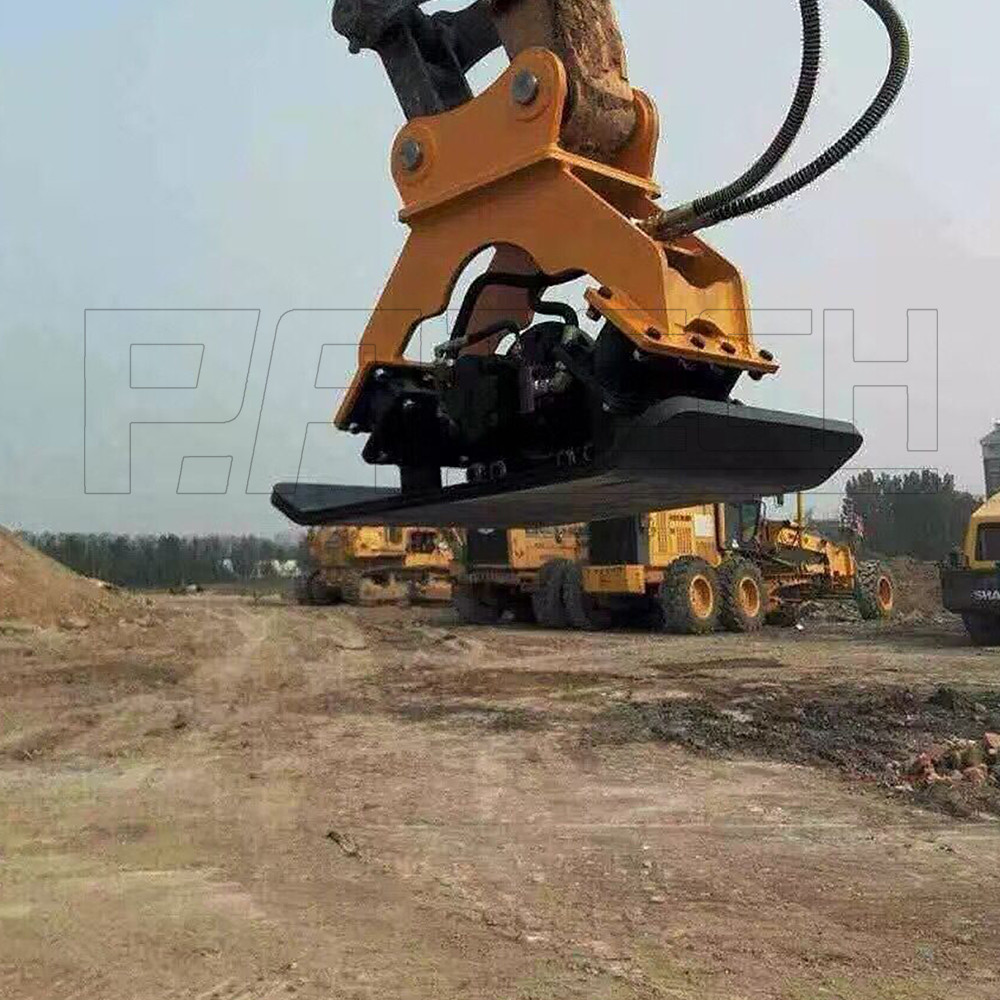

Construction Site of Hydraulic Compactor Plate, Vibratory Rammer
Product Features of Hydraulic Compactor Plate, Vibratory Rammer
1. The structure is simple, the operation is convenient and the use and maintenance are convenient.
2. Compaction of plane, inclined plane, step, ditch and pit and other complicated foundations can be completed.
Factory Show of Hydraulic Compactor Plate, Vibratory Rammer
