Place of Origin: | CHINA |
---|---|
Brand Name: | PA TECH |
Certification: | CE |
Model Number: | JX K-MINI, JXK-02, JXK-04,JXK-06, JXK-08, JXK-10, JXK-17 |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Standard exporting package |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 200-500 sets |
Keyword: | P Type Quick Hitches Coupler | Application: | Connect The Excavator And The Attachments |
---|---|---|---|
Brand: | P.A Tech | Type: | JX K-MINI, JXK-02, JXK-04,JXK-06, JXK-08, JXK-10, JXK-17 |
OEM: | Available | After-sales Service: | Field Installation, Commissioning And Training, Field Installation |
Video Outgoing-installation: | Available | Machinery Test Report: | Available |
Warranty: | 6 Months | Suitable For Excavator: | 1.5-45Ton |
Weight: | 30kg-1T, 30kg-1T | Pin Diameter: | Custom-made |
High Light: | P Type excavator bucket quick coupler,VOLVO excavator bucket quick coupler,10tons mini excavator quick hitch |
P Type 11.5-40Tons Excavator Bucket Quick Hitch Coupler Fast Connector
Product Features of Quick Hitches Coupler, Excavator Fast Connector
(1) Integrative mechanical design of high strength manganese steel and structure is durable and suitable for assembly requirements of excavators of various tonnages.
(2) Electric switches are installed in the cab to replace the high-cost oil pressure by electricity, which is convenient for the driver to operate.0
(3) Each cylinder is equipped with a hydraulic control one-way v0alve and a mechanical locking safety device to ensure that the fast connector can work normally when the oil circuit and circuit are cut off.
(4) Each fast connector is equipped with safety pin protection system to ensure that the fast connector can work normally and play the role of "double insurance" when the oil cylinder of the fast connector fails.
P Type 11.5-40Tons Excavator Bucket Quick Hitch Coupler Fast Connector
Product Parameters of Quick Hitches Coupler, Excavator Fast Connector
Model | Unit | JX K-MINI | JX K-02 | JX K-04 | JX K-06 | JX K-08 | JX K-10 | JX K-17 |
Length C | mm | 300-450 | 550-595 | 581-610 | 795-825 | 888-980 | 980-1060 | 1005-1150 |
Height G | mm | 246 | 312 | 310 | 388 | 492 | 574 | 558-610 |
Width B | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
Pins Center Distance D | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
Arm Width A | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
Cylinder Stroke E | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 460-560 | 600-650 |
Vertical Pins Center Dist Anc | mm | 159 | 200 | 200 | 260 | 325 | 385 | 360 |
Weight | kg | 30 | 60-70 | 80-90 | 220-250 | 400-430 | 500-650 | 700-1000 |
Working Pressure | kg/cm² | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Necessary Flow | l/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
P Type 11.5-40Tons Excavator Bucket Quick Hitch Coupler Fast Connector
Packing & Delivery of Quick Hitches Coupler, Excavator Fast Connector

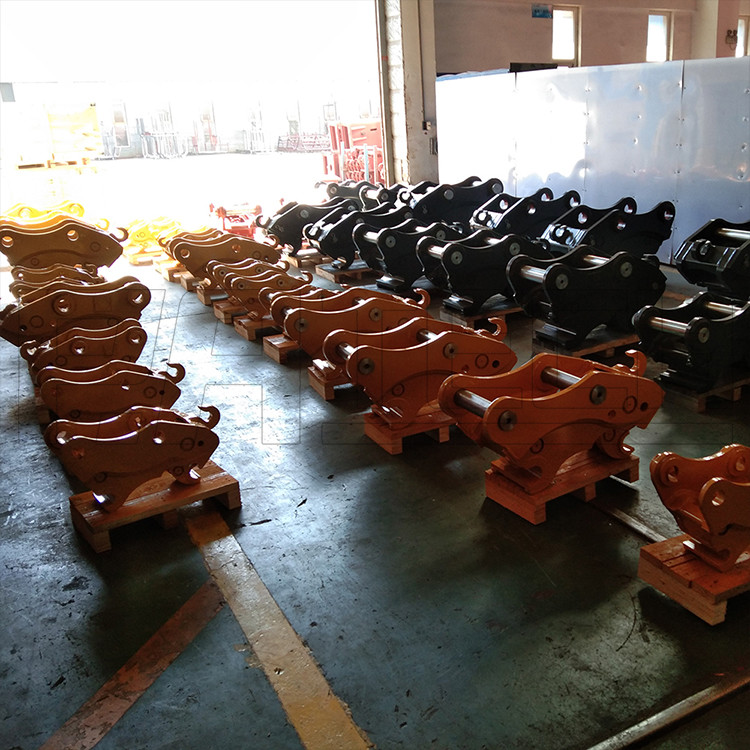

Workshop Show of Quick Hitches Coupler, Excavator Fast Connector
Factory Show of Quick Hitches Coupler, Excavator Fast Connector
Our Service:
